Healing Network Services and VNF Instances

Reference diagram

The following diagram summarizes the feature:

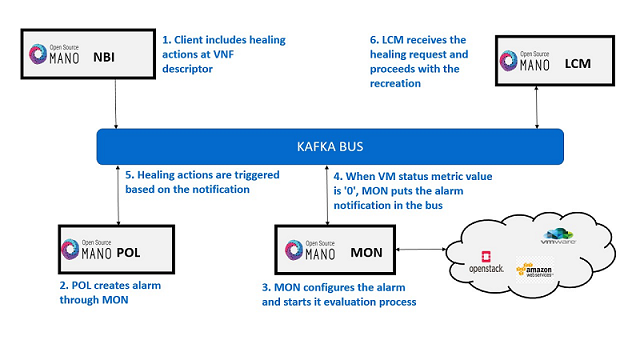

Diagram explaining auto-healing support

Healing descriptors can be included and be tied to automatic reaction to VM metric thresholds.
An internal alarm manager has been added to MON through the ‘mon-evaluator’ module, so VM metrics can trigger threshold-violation alarms when VM is in ERROR/DELETE state and perform healing actions.

Healing Descriptor

The healing descriptor is part of a VNFD. Like the example below shows, it mainly specifies:

The VDU to be healed (healing-policy:vdu-id)
The healing recovery option (action-on-recovery)
The minimum time it should pass between healing operations (cooldown-time)
To run day1 primitives for VDU (day1)

healing-aspect:
-   id: autoheal_vnfd-VM_autoheal
    healing-policy:
    - vdu-id: autoheal_vnfd-VM
      event-name: heal-alarm
      recovery-type: automatic
      action-on-recovery: REDEPLOY_ONLY
      cooldown-time: 180
      day1: false

Example

Get the descriptors:

git clone --recursive https://osm.etsi.org/gitlab/vnf-onboarding/osm-packages.git

Onboard them:

cd osm-packages
osm vnfpkg-create autoheal_vnf
osm nspkg-create autoheal_ns

Launch the NS:

osm ns-create --ns_name heal --nsd_name autoheal_nsd --vim_account <VIM_ACCOUNT_NAME>|<VIM_ACCOUNT_ID>
osm ns-list
osm ns-show heal

How to enable/disable autohealing

With the previous SA architecture, it is possible to enable/disable autohealing by patching the POL deployment in kubernetes:

The steps are given below:

To enable the autohealing feature
- change the env OSMPOL_AUTOHEAL_ENABLED to True in devops dockerfile.
- To enable during runtime, in pol deployment file modify the env OSMPOL_AUTOHEAL_ENABLED to True.
```
   kubectl -n osm edit deployment pol
```
```
   - env:
       - name: OSMPOL_AUTOHEAL_ENABLED
         value: True
```
To disable the autohealing feature
- change the env OSMPOL_AUTOHEAL_ENABLED to False in devops dockerfile.
- To disable during runtime, in pol deployment file modify the env OSMPOL_AUTOHEAL_ENABLED to False.
```
   kubectl -n osm edit deployment pol
```
```
   - env:
       - name: OSMPOL_AUTOHEAL_ENABLED
         value: False
```

With the new architecture, Airflow DAGs for healing can be selectively disabled in Airflow UI by pressing the toggle next to the DAG to pause/unpause it:

- vdu_down, to enable/disable auto-heal

Testing:

To ensure NS is instantiated successfully, check metrics at Prometheus, visit http://[OSM_IP]:9091 and look for osm_vm_status. Metric value should be ‘1’.
Run the following openstack commands to induce and error or delete a VM:

# To test healing in error state, induce error state in vm
openstack server set --state error <server-id>
# To test healing in deleted state, delete the vm
openstack server delete <server-id>

Check metrics at Prometheus, visit http://[OSM_IP]:9091 and look for osm_vm_status. Metric value should be ‘0’.
Heal operation will be triggered at POL and VM respawn will happen.
